Conditional Branch in OSB

Conditional Branch:- It is used to route the incoming requests to different business services based on different conditions like equal to (=), not equal to (!=), less than (<), less than equal to(<=), greater than(>), greater than or equal to(>=).

If no any conditions satisfied then by default branch is executed.

Scenario:- Create a OSB service which will accept employee details, whose salary is greater than 30,000 he is eligible for Loan, whose salary is less than or equal to 30,000 he is not eligible for loan.

Solution:-

Create a project name it as ConditionalBR (as per your choice you can give it)

create a schema as per the requirement and name it as per your choice

Right click on project name--->New--->Xsd Schema (give the schema name as per your choice)



<?xml version="1.0" encoding="windows-1252" ?>

<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns="http://www.example.org"

            targetNamespace="http://www.example.org" elementFormDefault="qualified">

  <xsd:element name="employeedetails">

    <xsd:complexType>

      <xsd:sequence>

        <xsd:element name="FristName" type="xsd:string"/>

        <xsd:element name="MiddleName" type="xsd:string"/>

        <xsd:element name="LastName" type="xsd:string"/>

        <xsd:element name="Age" type="xsd:integer"/>

        <xsd:element name="Salary" type="xsd:integer"/>

        <xsd:element name="ZIP" type="xsd:integer"/>

        <xsd:element name="Address" type="xsd:string"/>

      </xsd:sequence>

    </xsd:complexType>

  </xsd:element>

  <xsd:element name="Result">

    <xsd:complexType>

      <xsd:sequence>

        <xsd:element name="LoanResponse" type="xsd:string"/>

      </xsd:sequence>

    </xsd:complexType>

  </xsd:element>

</xsd:schema>

Click on save button to save the schema changes.

Double click on conditionalBR which shows the structure of the project

Right-click on the Proxy service layer---->Insert Protocal---->HTTP

then provide proxy service name Click on Next, choose service type as Wsdl then from xsd I need to make wsdl, click on create wsdl

select interface type as Synchronous Interface, select input payload as xsd incoming request (employee details), if yours project xsd  is not shown in that folder the import the xsd by import option.

select output as result and click on ok

after selecting input and output payload window will appear like

then click on ok --->Next --->Finish

Double click on pipeline

Here we need set out logic

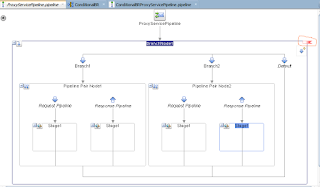

Drag-drop conditional branch, add one more branch

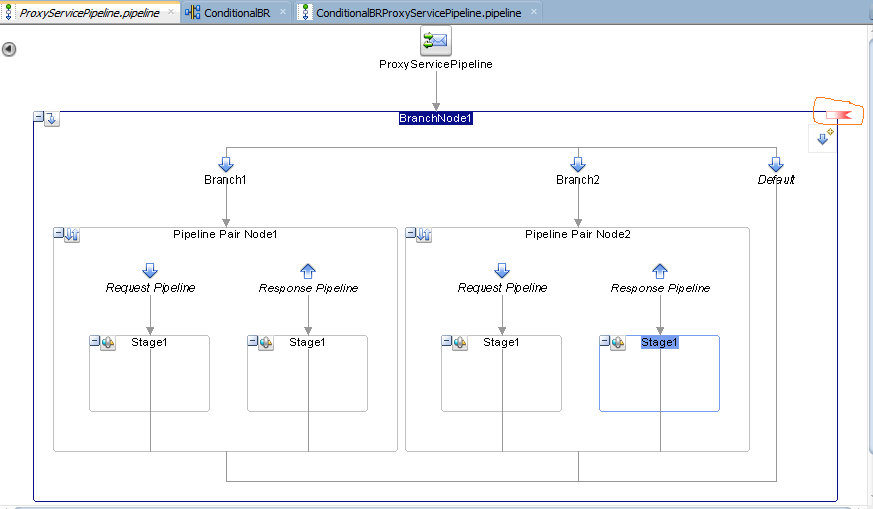

Drag-drop pipeline pair for each branches

Now you need to choose the condition element, click on red sign and set the overall condition element

Click on ok then save it

Drag-drop replace activity in each response pipeline

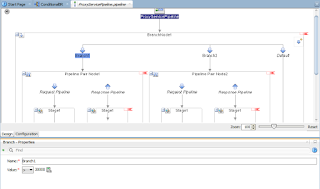

Double click on branch 1 and set the condition

Click on save button

Click on branch 2 and set the condition

Now go to 1st replace activity, double click on it and set the parameter as

Location:- Body

Expression :-  .

Value:- concat($body/exam:employeedetails/exam:FristName,'  ',$body/exam:employeedetails/exam:MiddleName,'  ',$body/exam:employeedetails/exam:LastName,'  ','is','Approved for Loan')

Replace option:- Replace node contents

Click on save button

Click on 2nd branch replace activity, set the parameter as

Location:- Body

Expression:- .

Value:- concat($body/exam:employeedetails/exam:FristName,'  ',$body/exam:employeedetails/exam:MiddleName,'  ',$body/exam:employeedetails/exam:LastName,'  ','is','Not Eligible for Loan')

Replace option:- Replace node contents

Click on save button

Now please deploy the composite and test.
